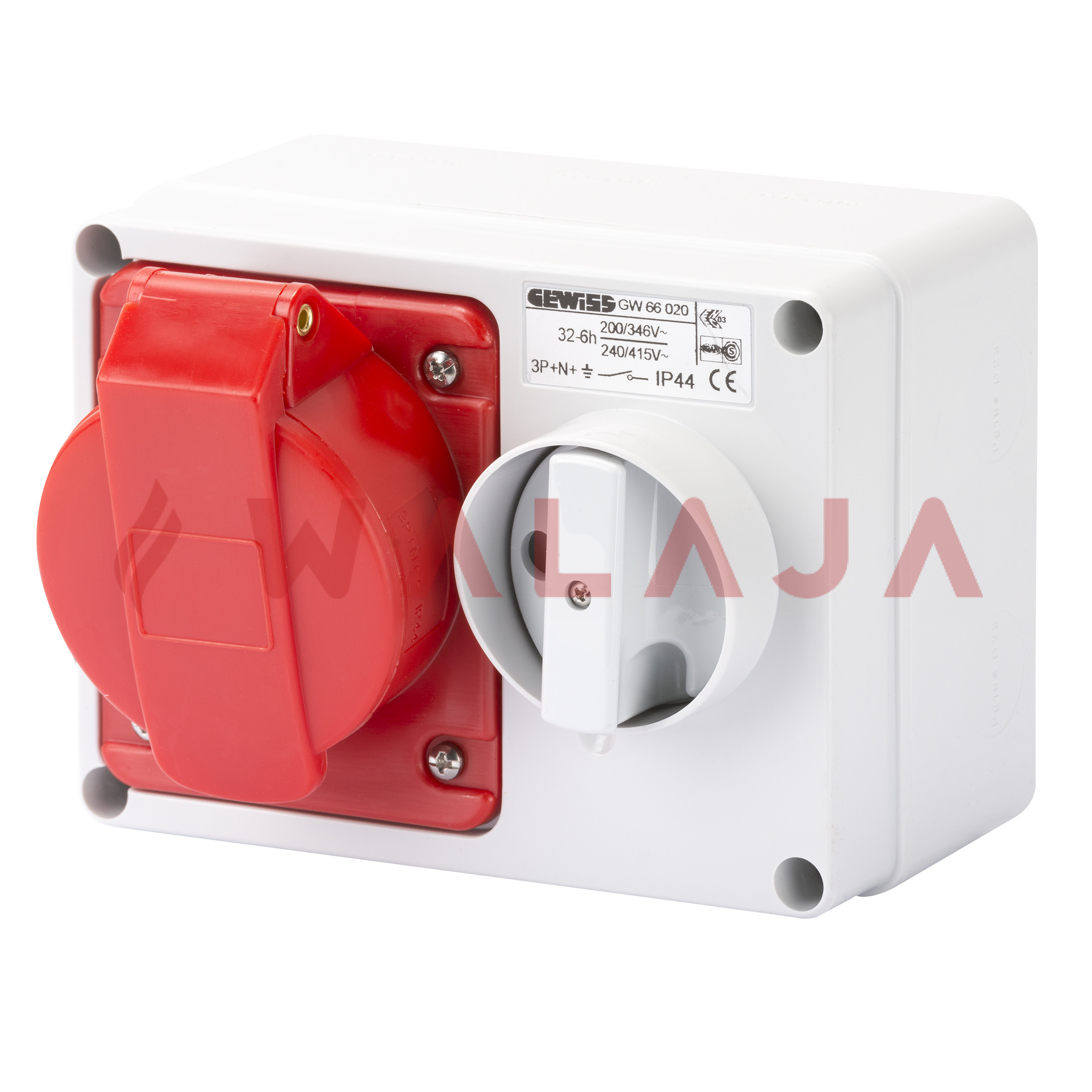

GEWISS INTERLOCK SWITCHED SOCKET -GW66020-IP44-32A-5PIN-415V
The GEWISS GW66020 is a high-safety interlock switched socket designed for 3-phase applications that require a neutral connection (5-pin: 3P + N + E).
Rated at 32A, 415V, this device ensures reliable power for industrial equipment, motors, and machinery.
The interlocking system prevents the plug from being inserted or removed while the switch is ON, offering maximum protection for operators.
With an IP44 rating, it is suitable for indoor and covered outdoor installations, protecting against dust and water splashes.
Key Features
-
Model: GW66020
-
Current Rating: 32A
-
Voltage: 380–415V AC
-
Pin Configuration: 5-Pin (3P + N + E)
-
Safety Interlock: Prevents plug insertion/removal under load
-
Protection Level: IP44 – dust & splash resistant
-
Installation: Wall-mounted
-
Impact Resistance: IK08
-
Switch Handle: Lockable for safety
-
Material: Halogen-free technopolymer body
-
Operating Temperature: –25°C to +55°C
Applications
Ideal for:
-
Motors, pumps & compressors
-
Industrial workshops & machine shops
-
Commercial power distribution
-
Warehouses & logistics areas
-
3-phase systems requiring neutral conductor
Benefits
-
Enhanced operator safety with interlock system
-
Reliable 32A supply for heavy-duty equipment
-
Splash-proof & dust-resistant (IP44)
-
Suitable for indoor & sheltered outdoor use
-
Easy wiring and installation
-
Durable construction for long service life
Installation Notes
-
Use correct cable sizes as per current rating
-
For 3-phase + neutral applications only
-
Avoid exposure to direct high-pressure water
-
Use appropriate overcurrent protection (MCB/RCBO)
