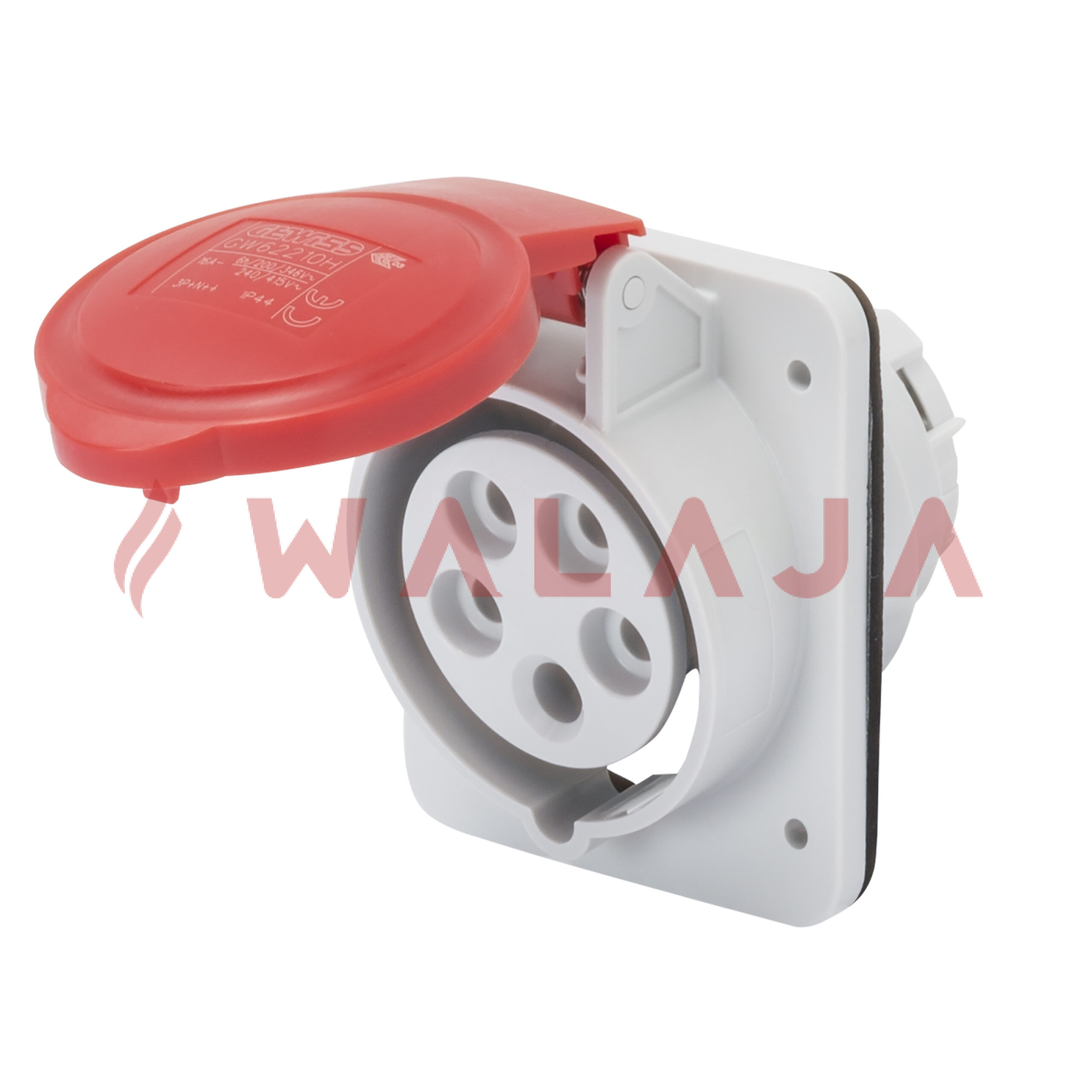

GEWISS PANEL MOUNTED SOCKET- GW62221H-IP44-32A-5PIN-415V

Key Features

• Model: GW62221H

• Configuration: 3P + N + E (3-phase + neutral + earth) – 5-pin

• Rated Current: 32 A

• Rated Voltage: 380–415 V AC, 50/60 Hz

• Ingress Protection: IP44 – splash and dust resistant

• Mechanical Strength: IK09 – impact-resistant

• Mounting Type: Flush panel-mounted with 10° angled design for easy plug insertion

• Wiring: Screw terminals supporting flexible (2.5–6 mm²) or rigid (2.5–10 mm²) cables

• Operating Temperature: –25 °C to +55 °C

• Material: Halogen-free insulating technopolymer with nickel-plated contacts for corrosion resistance

Applications

• Industrial machinery, motors, and pumps

• Factories, workshops, and warehouses

• Fixed panel distribution boards in commercial and industrial facilities

• Semi-outdoor areas requiring dust and splash protection

• Any application needing reliable three-phase + neutral + earth connections

Benefits

• Durable & Reliable: Designed for long-term industrial use

• Safe & Protected: IP44 protection against dust and splashes, IK09 impact-resistant

• IEC 309 HP Standard: Ensures compatibility with a wide range of 5-pin industrial plugs and equipment

• Easy Installation: Screw-type terminals for secure and flexible wiring

• Stable Connections: Flush panel mount ensures safe and ergonomic power connections

Installation Notes

• Use appropriate cable size as per specifications

• Compatible with equipment requiring 3-phase + neutral + earth (5-pin)

• Ensure proper overload protection for loads near 32 A

• IP44 offers splash protection but avoid direct exposure to heavy water jets
