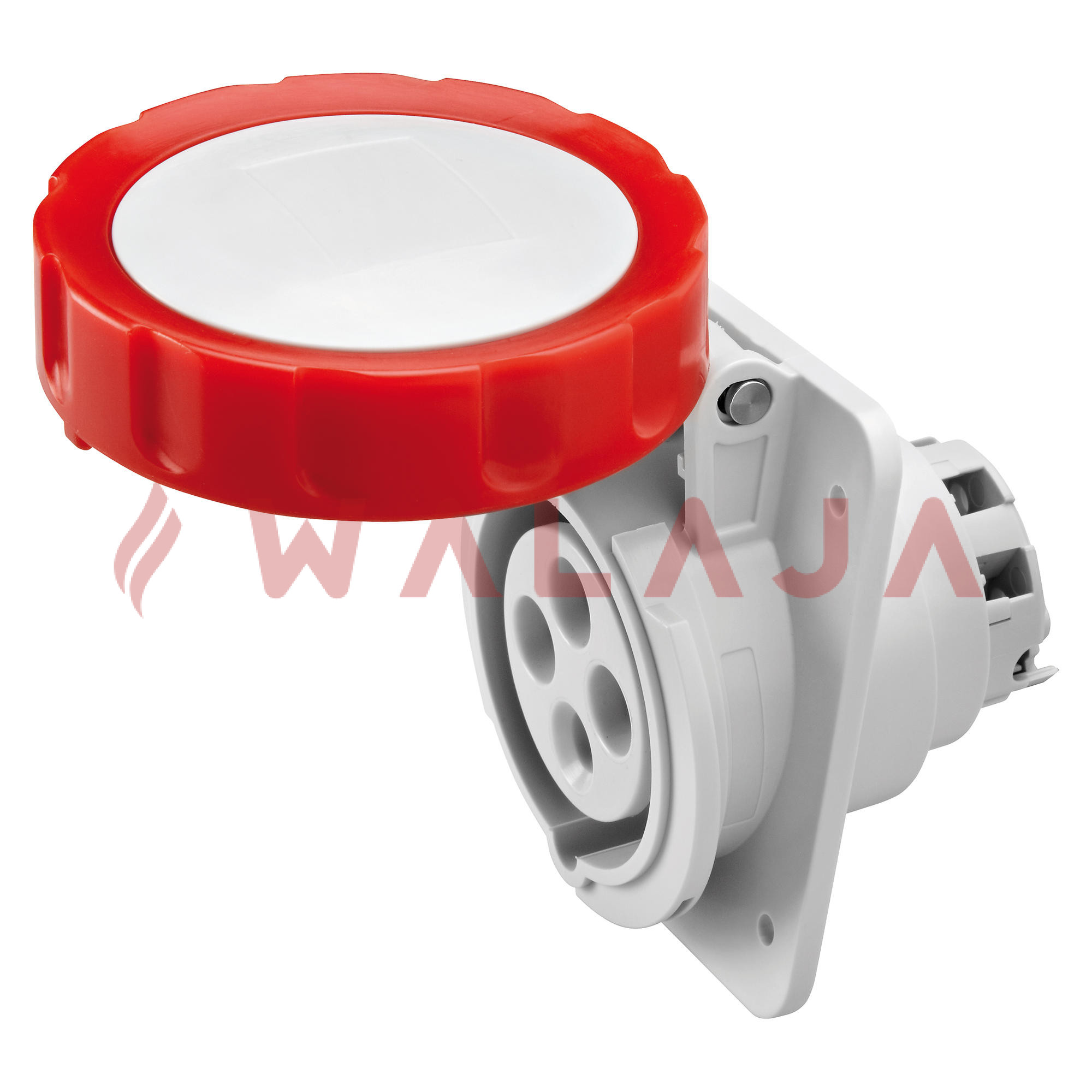

GEWISS PANEL MOUNTED SOCKET- GW62242H-IP67-32A-4PIN-415V

Key Features

• Model: GW62242H

• Configuration: 3P + E (3-phase + earth) ? 4-pin

• Rated Current: 32?A

• Rated Voltage: 380?415?V AC, 50/60 Hz

• Ingress Protection: IP67 (dust-tight and waterproof)

• Mechanical Strength: IK09 ? resistant to impacts and rough handling

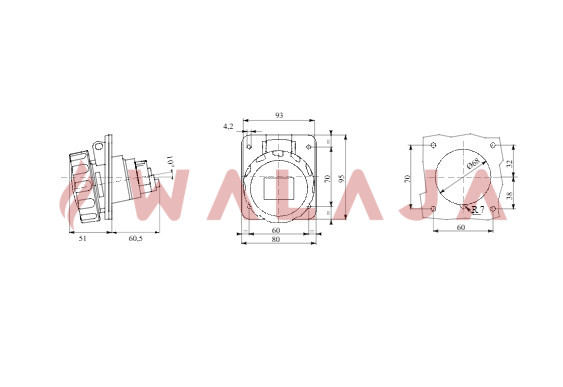

• Mounting Type: Flush panel-mounted with 10? angled design for easier plug insertion and removal

• Wiring: Screw terminals compatible with flexible (2.5?6?mm?) or rigid (2.5?10?mm?) cables

• Operating Temperature: ?25??C to +55??C

• Material: Halogen-free insulating technopolymer with nickel-plated contacts for corrosion resistance

Applications

• Industrial machinery, motors, and pumps

• Factory or workshop power distribution panels

• Logistics and warehouse equipment requiring 3-phase power

• Semi-outdoor environments, loading bays, and industrial yards

• Fixed installations requiring high durability and environmental protection

Benefits

• Durable & Reliable: Built for long-term use in demanding industrial environments

• High Protection: IP67 ensures protection against dust and water, while IK09 ensures mechanical robustness

• International Standard Compliance: IEC 309 HP standard ensures compatibility with a wide range of 3-phase plugs and equipment

• Ease of Installation: Screw-type terminals allow straightforward connection of various cable types

• Safe & Efficient: Designed for semi-permanent panel installations, ensuring safe and reliable electrical connections

Installation Notes

• Ensure the use of proper cable sizes according to specifications

• Compatible only with equipment designed for 3-phase + earth (3P + E) connections

• IP67 provides excellent protection, but avoid chemical exposure or prolonged submersion

• Install proper overload protection for loads near 32?A
