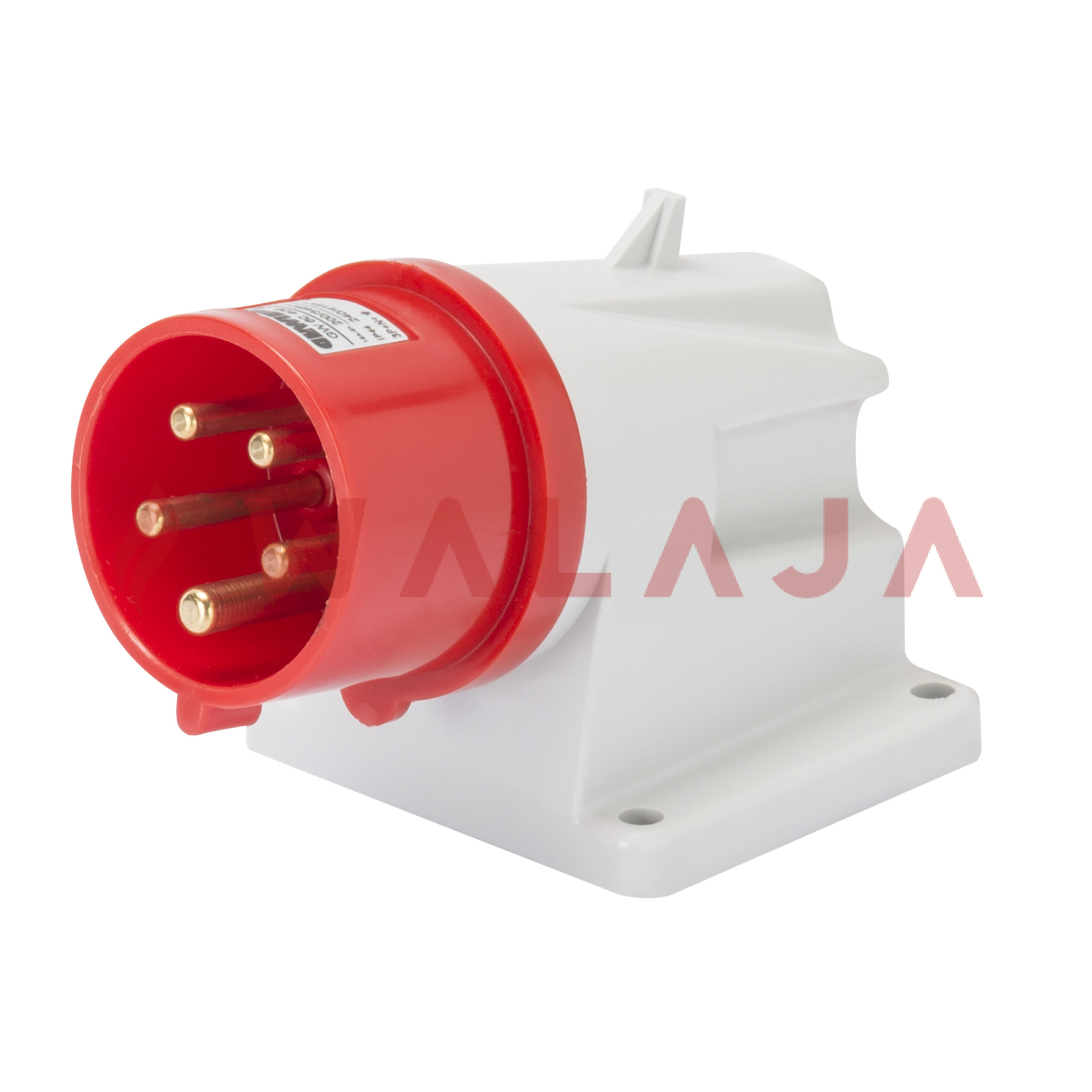

GEWISS WALL MOUNTED PLUG -90DEG- GW60419-IP44-32A-4PIN-415V

Key Features

• Model: GW60419

• Configuration: 3P + E (3-phase + earth) ? 4-pin

• Rated Current: 32?A

• Rated Voltage: 380?415?V AC, 50/60 Hz

• Ingress Protection: IP44 ? splash and dust resistant

• Mounting Style: Wall-mounted, 90? angled for compact installation

• Mechanical Strength: IK08 ? resistant to mechanical impacts

• Wiring: Screw terminals suitable for flexible (2.5?6?mm?) or rigid (2.5?10?mm?) cables

• Operating Temperature: ?25??C to +55??C

• Material: Halogen-free insulating technopolymer with nickel-plated contacts for corrosion resistance

Applications

• Industrial machinery, motors, and pumps

• Factories, workshops, and warehouses

• Fixed wall-mounted installations in commercial and industrial facilities

• Indoor or semi-outdoor areas requiring dust and splash protection

• Compatible with IEC 309 HP standard 4-pin industrial sockets

Benefits

• Durable & Reliable: Designed for long-term industrial use

• Ergonomic Design: 90? wall-mounted design reduces cable strain and improves accessibility

• Safe & Protected: IP44 splash and dust protection ensures operational safety

• International Standard Compliance: IEC 309 HP standard for compatibility with 4-pin industrial sockets

• Easy Installation: Screw-type terminals allow secure and flexible wiring

• Stable Connections: Reliable 3-phase + earth power supply for heavy-duty equipment

Installation Notes

• Ensure proper cable size per specifications to maintain safety and performance

• Compatible with 3-phase + earth (4-pin) equipment only

• IP44 protection is splash and dust-resistant, but avoid exposure to direct water jets

• Proper overload protection should be used for loads near 32?A
