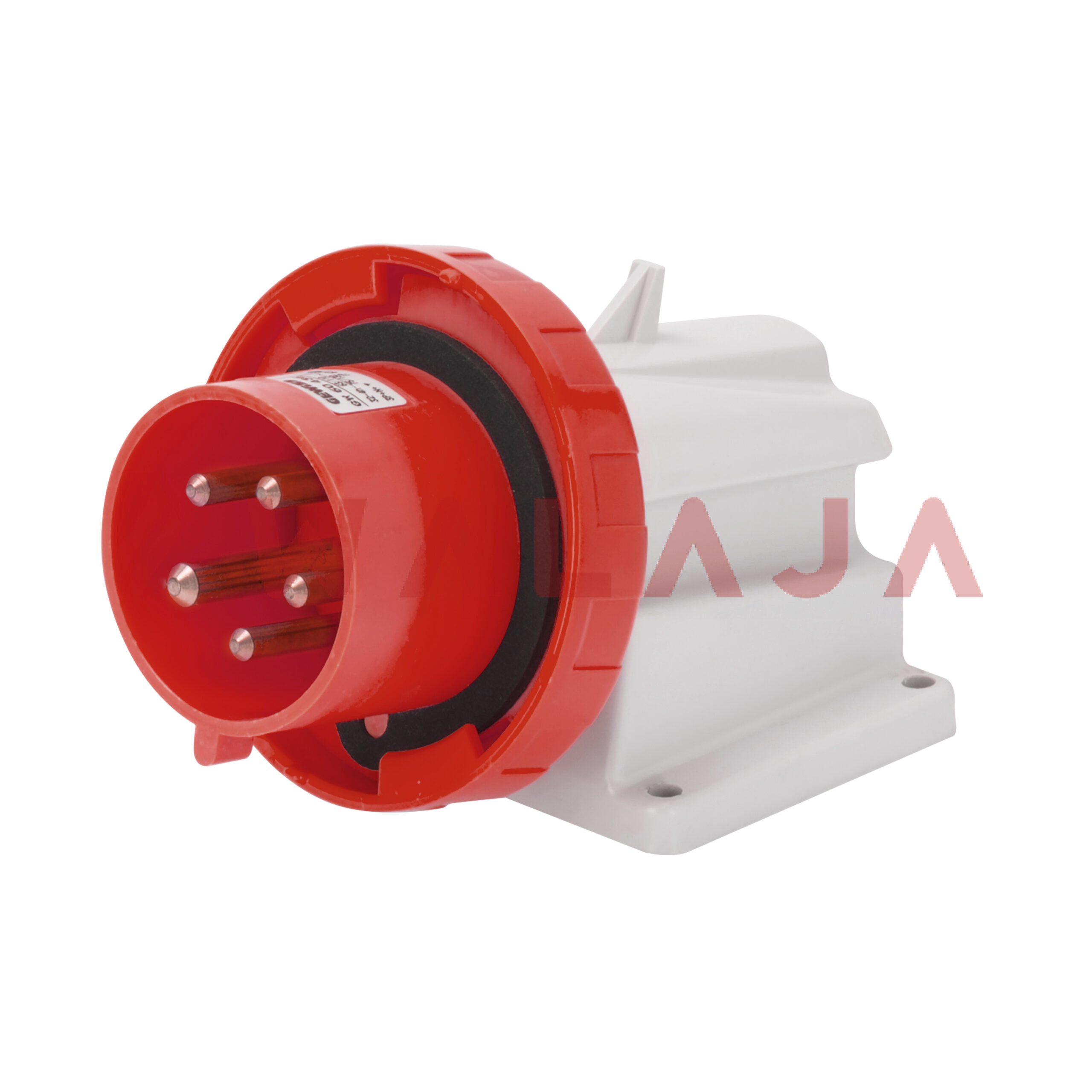

GEWISS WALL MOUNTED PLUG -90DEG- GW60442-IP67-32A-5PIN-415V

Key Features

• Model: GW60442

• Pins: 3P + N + E (5-pin)

• Rated Current: 32A

• Rated Voltage: 380?415V AC

• Protection Rating: IP67 ? fully dustproof & waterproof

• Mounting Design: 90? wall-mounted for space saving

• Impact Resistance: IK09

• Terminal Type: Screw terminals for secure wiring

• Material: Halogen-free technopolymer housing

• Operating Temperature: ?25?C to +55?C

• Corrosion Resistant: Nickel-plated metal contacts

Applications

Suitable for harsh industrial sites requiring reliable electrical power:

• Outdoor machinery and motor connections

• Industrial plants, workshops & fabrication units

• Warehouses, loading/unloading areas

• Construction sites & logistics hubs

• Heavy-duty equipment with 3-phase + neutral supply

Fully compliant with IEC 309 HP standard.

Benefits

• Highly durable and weatherproof ? IP67 ensures protection against water and dust

• Safe & secure installation with angled wall-mounted design

• Ideal for harsh conditions ? IK09 impact resistance

• Reliable power supply for 3-phase + neutral loads

• Easy to install with screw terminals and ergonomic design

Installation Notes

• Use appropriate cable sizes as per electrical load

• Ensure correct wiring for 5-pin (3P + N + E) configuration

• Use proper circuit breakers/fuses for overload protection

• Suitable for indoor or outdoor applications where IP67 is required
