Legrand Floor Box-3 Compartments – Grey Cover RAL 7031 With Flexible Cable Exits 689631
Description for Legrand Floor Box-3 Compartments – Grey Cover RAL 7031 With Flexible Cable Exits 689631

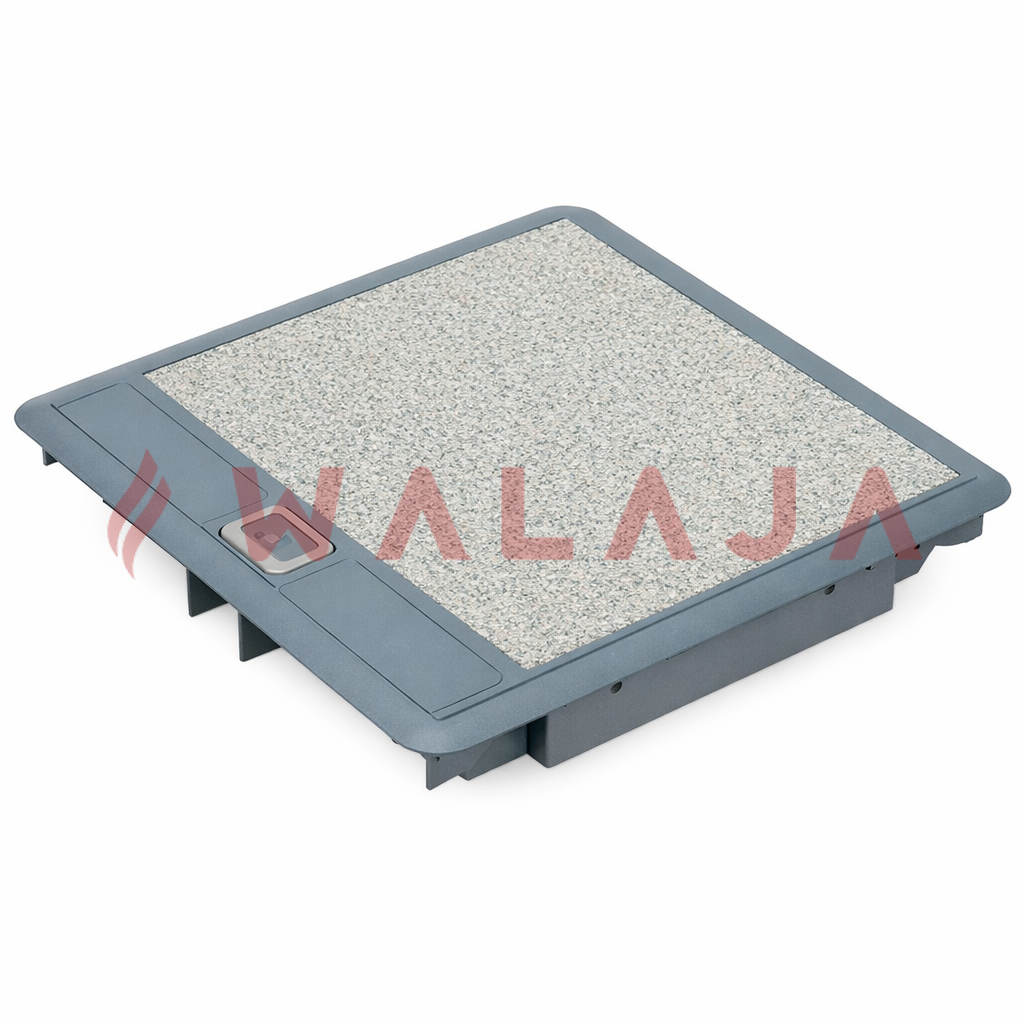

Legrand Floor Box-3 Compartments – Grey Cover RAL 7031 With Flexible Cable Exits
Product charateristics
- Floor boxes for carpet – Conform to IEC/EN 60670 – 23 – Compatible with either raised access floor trunking system and screed floor system
- Lid and trims for carpet – To be equipped with Arteor wiring Accessories – Supplied with flexible or rigid cable exits3 – compartment floor boxes – To be fllled on either : – modular backbox for raised floors Cat.No 6 896 39 – screed floor backbox Cat.No 6 896 34 – Grey cover RAL 7031 with flexible cable exits
Specifications
Technical characteristics
| Cover model | Square |
|---|---|
| Number of device cups | 1 |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 0 |
| Number of socket outlets British Standard BS1363 | 0 |
| Housing material | Other |
| Degree of protection (IP) | IP20 |
| With opening carpeting | Yes |
| Depth of flooring recess | 8 mm |
| Protective frame carpeting | No |
| Colour | Grey |
| RAL-number | 7031 |
| Suitable for subfloor duct | Yes |
| Suitable for hollow floor | Yes |
| Suitable for double floor built-in | Yes |
| Suitable for wet cleaning | No |
|---|---|
| Outer width | 280 mm |
| Outer length | 280 mm |
| Length built-in dimension | 260 mm |
| Width built-in dimension | 260 mm |
| Min. built-in depth | 65 mm |
| Depth | 41 mm |
| Number of rows | 3 |
| Degree of impact strength (IK) | IK08 |
| Operating / setting temperature | -5-60 °C |
| Storage temperature | -25-60 °C |
| Halogen free | Yes |
| Fitted with USB plug | No |
