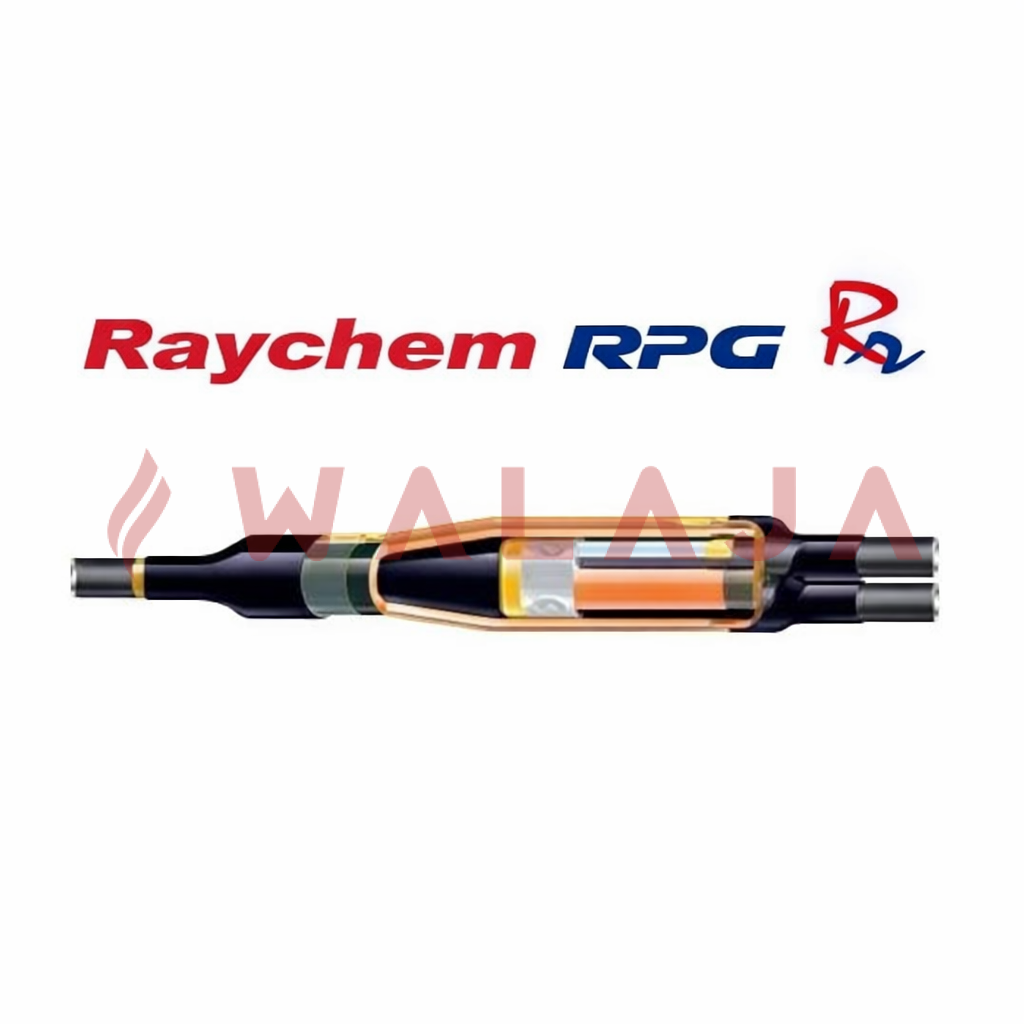

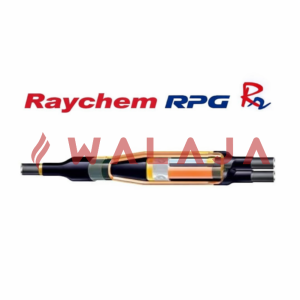

TSJ joints are designed for simplicity and easy installation. They are part of TE’s cable accessories range, known for more than 60 years for its expertise, reliability, and quality.

KEY FEATURES

A comprehensive range of resin-filled straight joints and branch joints for low voltage armoured power cables with conductor sizes up to 400 mm2

Designed with generous dimensions to accommodate modern mechanical connectors needing no special installation tooling

The combination of resin supplied with the kit in a double chamber bag provides insulation, sealing and mechanical protection for the completed joint

Clear rigid joint shells to aid correct installation

Armour continuity bonding components included in every kit

Qualified to national and international performance standards

Product Type Features

Material System  Two-Part Polyurethane

Joints & Splice Technology  Resin

Joints & Splice Product Type  LV Resin Straight Joint

Insulation  XLPE/EPR

Cable Shield Style  Various LV

Mechanical Connectors Included  Yes

Closing Method  Clips

Product Family  B&H

Mechanical Lug Included (Conductor)  Yes

Cable Seal  Foam

Filler Packing (D/C)  Double Chamber Bags

Filler  PU RAPID 4300B / GUROFLEX

Shelf Life  3 Years

Connector Type  Mechanical

Case Seal  Clip

Configuration Features

Number of Cores  4 (max)

Number of Main Wires (Max)  1

Number of Branch Wires (Max)  0

Electrical Characteristics

Joints & Splice Voltage Class (kV) .6/1

Body Features

Color  Transparent

Partition Orientation  Horizontal

Housing Features

Armoring  SWA

Dimensions

Cable Connection  Mechanical Connector

Cross-Section Range (mm⊃2;) 6 – 10, 16 – 25, 35, 70 – 95, 120 – 150, 185 – 240, 300

Cross-Section Range (AWG/kcmil) 350 – 500

Cable Cross-Section (Max) (Main) (mm⊃2;) 4, 35, 70

Cable Cross-Section (Min) (Main) (mm⊃2;) 25, 50, 95, 185, 300

Branch Cable Cross-Section (Max) (mm⊃2;) 120, 16, 185, 300, 35, 6, 70

Branch Cable Cross-Section (Min) (mm⊃2;) 35, 95

Operation/Application

Joint & Splice Application Type  Inline

Industry Standards     Standards  EN 50393

Design Specification  CENELEC 50393

Product Availability     /Joints & Splice Product Availability  EMEA

Packaging Features   / Packaging Method - Cardbox

Other  Product Use - Joints/Splices

Installation Instruction - English

Other Colors Available - No

NOTE:

For armoured cables additional accessories are requierd and  have to be ordered separately

Connectors are not included in the kit



DESCRIPTION  PN TCPN JOINT LENGTH

 (MM)

JOINT WIDTH

 (MM)

CABLE ENTRY  RANGE

 (MM)

4 CORE UNARMOURD RANGE (MM) 4 CORE ARMOURD RANGE (MM)
TSJ-SC1 BAH-038081518             BM0915-000 190 36 6-27 4CX10 4CX6
TSJ-SC2 BAH-038081519        BM0916-000 270 49 16-37 4CX25 4CX16
TSJ-SC3 BAH-038081520             BM0917-000 360 75 22-44 4CX50 4CX35
TSJ-SC4 BAH-038081521             BM0918-000 430 85 26-52 4CX95 4CX70
TSJ-SC5 BAH-038081522             BM0919-000 530 110 35-67 4CX150 4CX120
TSJ-SC6 BAH-038081523           BM0920-000 670 135 49-67 4CX240 4CX240
TSJ-SC7 BAH-038081524             BM0921-000 870 160 59-77 4CX300 4CX300
